Apple EMOTION and ELEGNT: Teaching Robots to Communicate Like Humans

Updated: March 27 2025 21:26
In an era where technology is rapidly blurring the lines between human and machine interaction, groundbreaking frameworks called EMOTION and ELEGNT from Apple are transforming how humanoid robots communicate with us. Imagine a robot that doesn't just speak but gestures with the natural fluidity of human movement - waving enthusiastically when greeting you, raising its hands in celebration, or giving a reassuring thumbs-up when you need encouragement.

While robots have become increasingly sophisticated in verbal communication, their ability to convey emotions and intentions through body language has lagged behind - until now.


Human communication is remarkably complex, with facial expressions, hand gestures, and body posture conveying up to 70% of our message in social interactions. These non-verbal cues help us express emotions, emphasize points, and build rapport - all crucial elements of natural communication that robots have traditionally struggled to replicate.

Traditional approaches to robot expressiveness have relied on pre-programmed movement sequences or limited sets of gestures that often appear stilted and unnatural. These methods require extensive manual programming and lack the contextual awareness and adaptability that characterize human non-verbal communication.

The result? Robots that may speak fluently but move awkwardly, creating an uncanny valley effect that reminds us we're interacting with a machine rather than a social entity. This disconnect significantly impacts how we perceive and engage with robots, limiting their effectiveness in social settings where natural communication is essential.

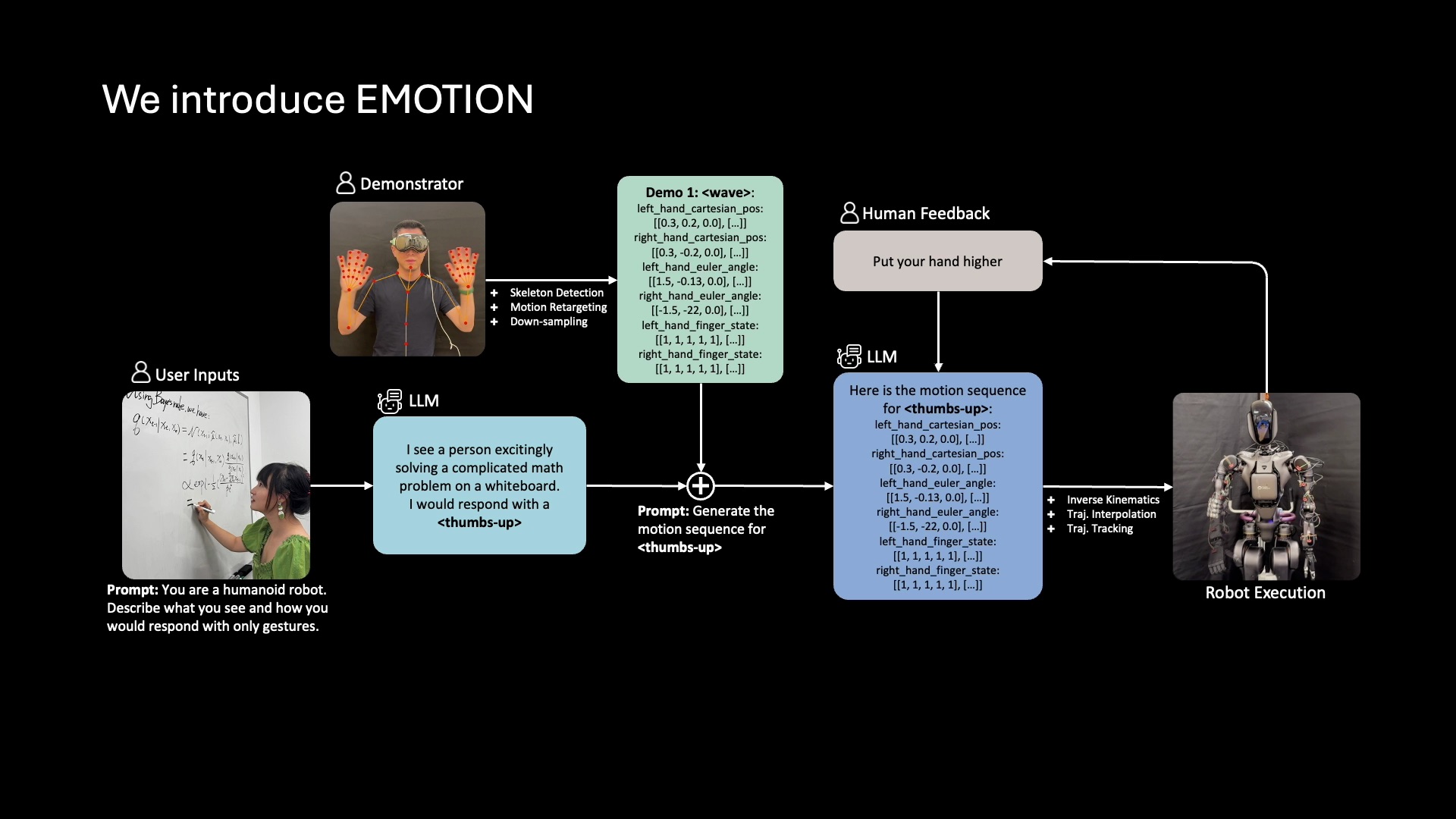

The EMOTION framework represents a paradigm shift in how robots learn to move expressively. Instead of relying on extensive pre-programming, EMOTION harnesses the power of large language models (LLMs) to generate contextually appropriate gestures dynamically.


At its core, the system works through a sophisticated process:

• It takes user language instructions or visual observations as input
• The LLM interprets this input and generates appropriate motion sequences
  These sequences are then translated into physical movements by the robot
• Human feedback can be incorporated to refine and improve the gestures

What makes EMOTION particularly innovative is its ability to learn "in-context" - meaning it can understand the social situation and generate appropriate gestures without requiring extensive training for each specific scenario. This mimics how humans learn to use body language naturally through observation and adaptation.


The research team developed two versions of their framework: the standard EMOTION system and an enhanced version called EMOTION++ that incorporates human feedback to refine and improve gestures.

In EMOTION++, when the robot performs a gesture, a human can provide simple feedback like "put your hand higher" or "move more slowly." The system then uses this feedback to adjust the motion sequence, creating a collaborative learning process between human and machine.

This human-in-the-loop approach proved particularly effective in the research, with EMOTION++ consistently outperforming the standard EMOTION framework in terms of both naturalness and understandability of gestures.

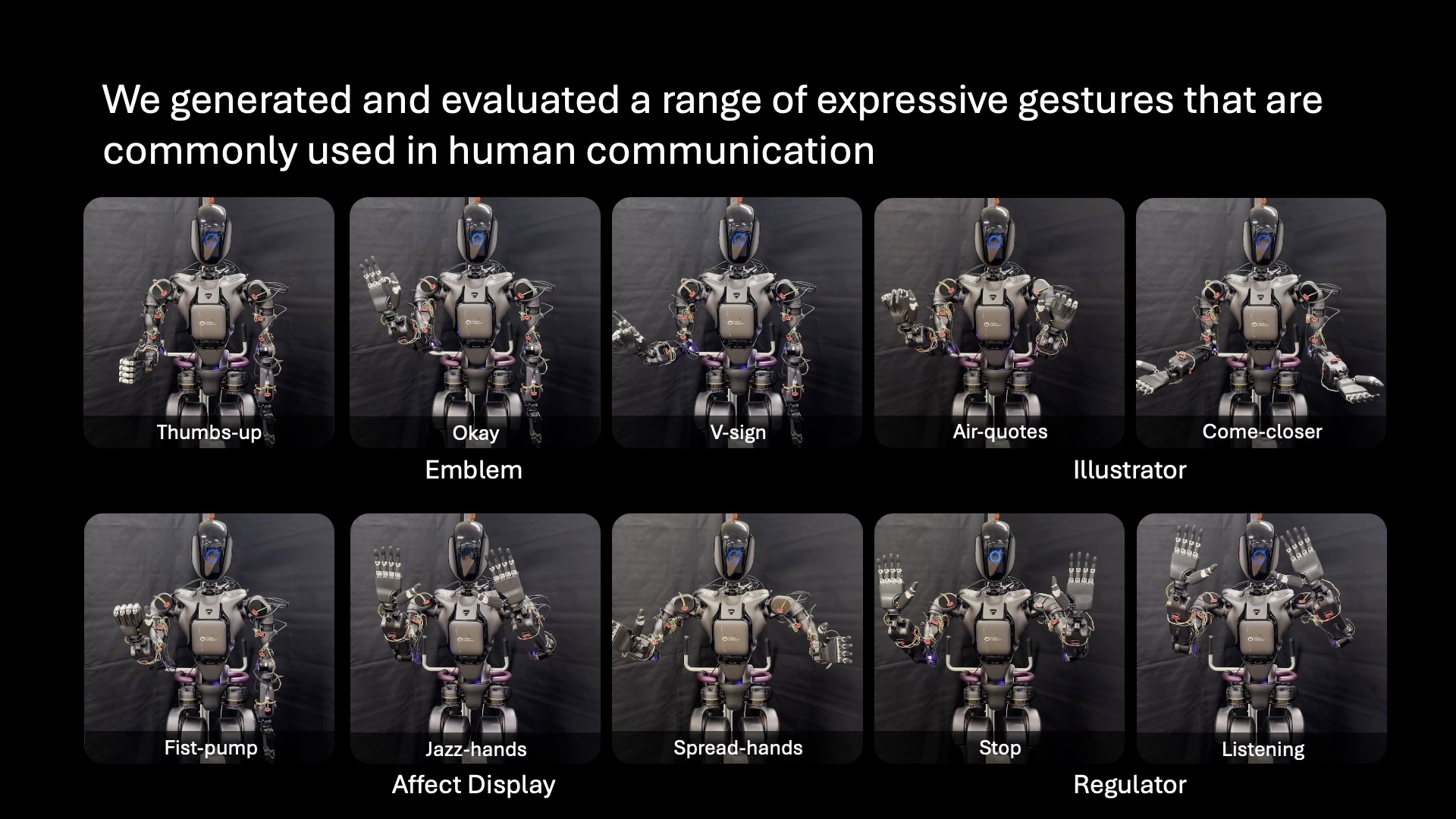

To evaluate their framework, the researchers conducted comprehensive online user studies comparing the performance of both EMOTION and EMOTION++ against human-operated robots. The study focused on 10 different expressive gestures, analyzing how natural and understandable they appeared to users. For several gestures, the EMOTION-generated movements were rated as comparable to or even better than those created by human operators.


Most importantly, EMOTION++ consistently outperformed the standard EMOTION framework, confirming the value of human feedback. Certain gestures received particularly high ratings (above 5 on the scale), including "stop" and "thumbs-up", and some gestures proved more challenging, with "listening" and "jazz-hands" receiving lower ratings (below 3).

These findings suggest that while the framework excels at common, well-defined gestures, more complex or nuanced expressions may require additional refinement - a challenge that EMOTION++ is specifically designed to address through its human feedback mechanism.


The EMOTION framework leverages several cutting-edge technologies to achieve its impressive results:

• Large Language Models (LLMs): These models provide the contextual understanding necessary to determine appropriate gestures for specific situations
• Vision-Language Models (VLMs): These help the robot interpret visual cues from its environment
• Skeleton Detection: This allows the system to map human movements to robot joints
• Motion Retargeting: This translates human-like movements to the robot's specific physical capabilities
• Inverse Kinematics: This calculates the joint angles needed to achieve desired hand positions

Together, these technologies enable the robot to generate fluid, contextually appropriate movements that feel natural rather than mechanical. One of the most valuable outcomes of this research is the identification of specific variables that influence how humans perceive robot gestures. The study revealed several key factors that designers should consider:

• Hand position: The placement of hands relative to the body significantly impacts gesture clarity
• Movement patterns: The trajectory and speed of movements affect how natural they appear
• Arm and shoulder articulation: The coordination between different joints creates fluidity
• Finger pose: The position of individual fingers adds nuance to expressions
• Speed: The pace of movements conveys different emotional states

These insights provide a roadmap for future research and development in expressive robotics, highlighting the specific elements that contribute to effective non-verbal communication.

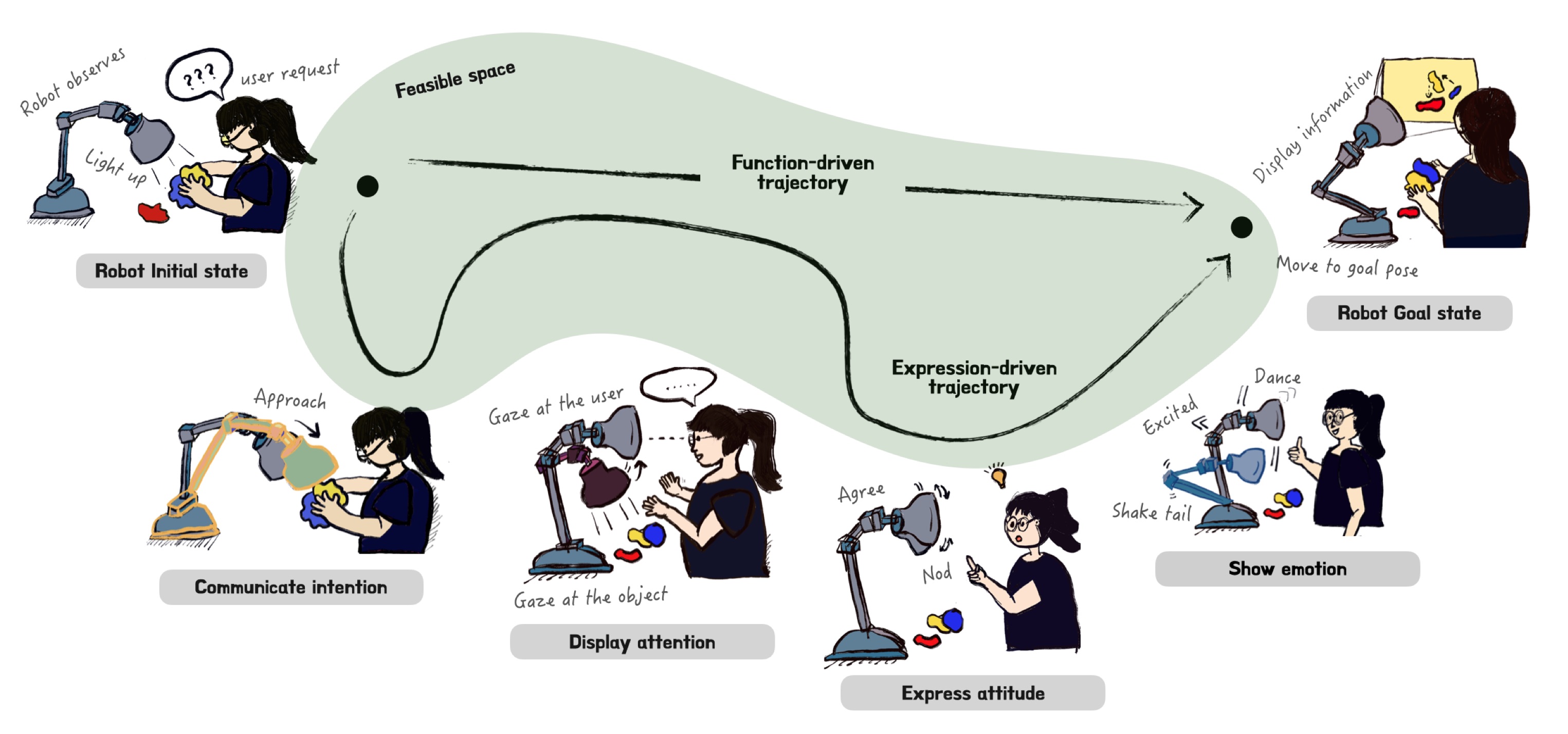

While EMOTION focuses on humanoid robots, another framework called ELEGNT (Expressive and Functional Movement Design for Non-anthropomorphic Robot) addresses the challenge of creating expressive movements for non-humanlike robots.


Developed by researchers Yuhan Hu, Peide Huang, Mouli Sivapurapu, and Jian Zhang, ELEGNT recognizes that expression isn't limited to human-shaped robots. The framework demonstrates that even a simple lamp-like robot with a 6-DOF arm can convey intentions, emotions, and social cues through carefully designed movements. The ELEGNT approach proposes that robot movements should balance two key utilities:

• Functional utility: Getting from point A to point B efficiently while accomplishing physical tasks
• Expressive utility: Using movement qualities to communicate internal states, intentions, and emotions

This dual focus enables robots to not just complete tasks but also engage users on a social and emotional level, creating more intuitive and satisfying interactions.

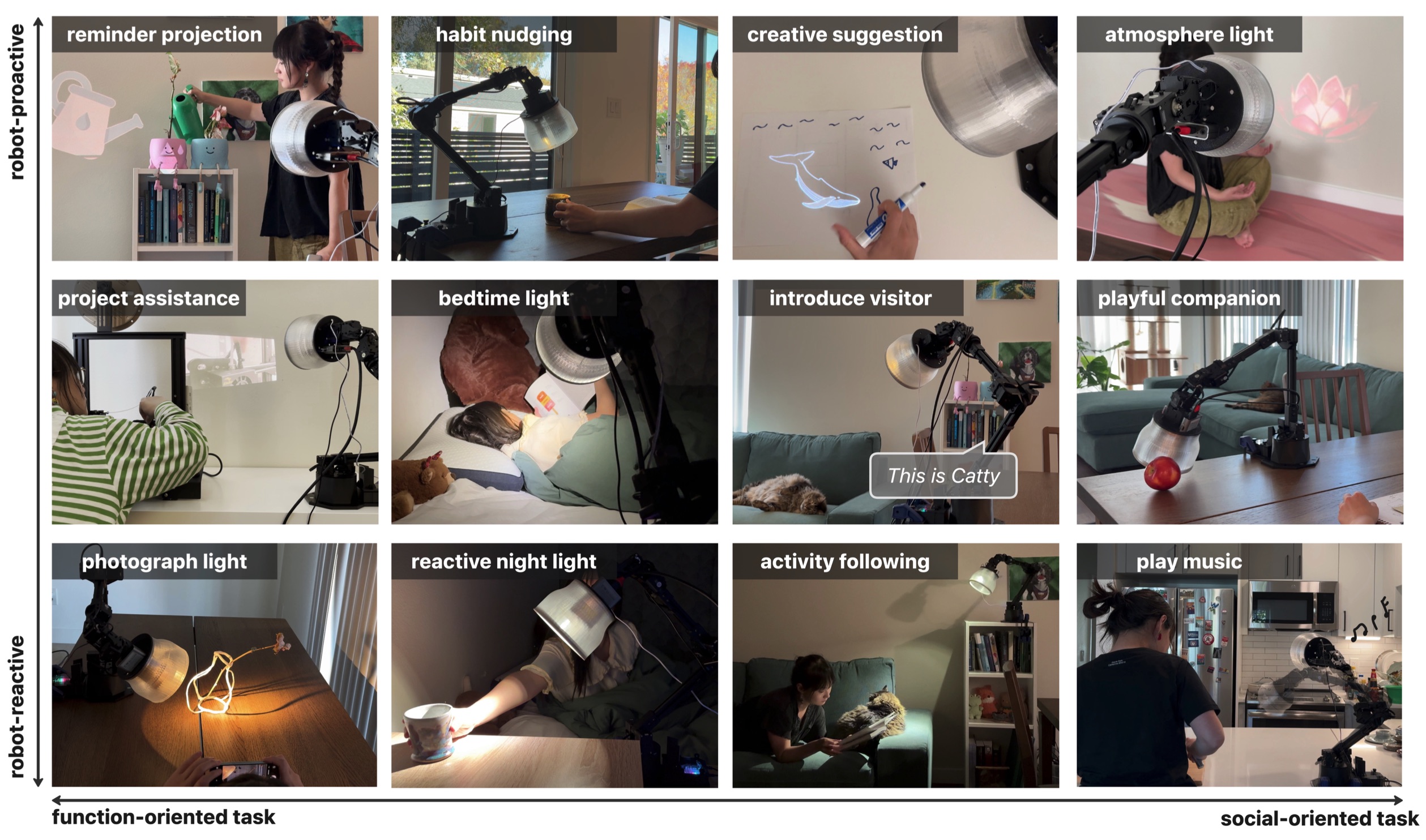

The ELEGNT research team employed a research-through-design methodology to create a lamp-like robot that could demonstrate both functional and expressive movements. This non-anthropomorphic design presents unique challenges and opportunities:

• Without a human-like face or body, the robot must rely entirely on movement qualities and light to express itself
• The familiar lamp form factor makes the robot accessible and non-threatening in home environments
• The combination of movable arm and light projection creates a rich vocabulary for communication

The researchers defined a set of movement primitives based on concepts from kinesics (body movement) and proxemics (spatial relationships), showing how even simple robots can create complex expressions through the quality of their movements.



The implications of this research extend far beyond the laboratory. As robots become increasingly integrated into our daily lives, the ability to communicate naturally becomes essential in numerous contexts:

• Healthcare: Robots that can express empathy and understanding through gestures could provide more comforting patient interactions
• Education: Expressive robots could engage students more effectively, using gestures to emphasize points and maintain attention
• Customer service: Robots in retail or hospitality settings could use appropriate gestures to appear more approachable and helpful
• Elderly care: Robots supporting older adults could use reassuring gestures to build trust and rapport
• Home environments: Even simple household robots could use expressive movements to communicate their state and intentions clearly

Looking ahead, the researchers suggest several promising directions for future development:

• Expanding the repertoire of gestures to include more complex expressions
• Integrating facial expressions with body movements for more complete non-verbal communication
• Developing culturally-sensitive gestures appropriate for different global contexts
• Creating adaptive systems that learn from ongoing interactions to continuously improve expressiveness
• Personalizing expressive movements to match individual user preferences and needs

Together, the EMOTION and ELEGNT frameworks from Apple Research represent significant steps toward bridging the communication gap between humans and robots. By enabling robots—both humanoid and non-anthropomorphic—to express themselves through natural, contextually appropriate movements, these technologies help them transcend the limitations of purely verbal communication.

What makes these approaches particularly powerful is their recognition that robot movement isn't just about completing physical tasks—it's about communication. Whether through a humanoid robot's hand gestures or a lamp robot's expressive movements, these non-verbal cues create a richer, more intuitive interaction experience.

As robots become more prevalent in our homes, workplaces, and public spaces, technologies like EMOTION and ELEGNT will play a crucial role in making these interactions feel more natural and less jarring. By giving robots the ability to "speak" the universal language of movement, we're not just improving their functionality—we're making them more relatable partners in our increasingly technological world.

Apple EMOTION Research Paper: EMOTION: Expressive Motion Sequence Generation for Humanoid Robots with In-Context Learning
Apple ELEGNT Research Paper: ELEGNT: Expressive and Functional Movement Design for Non-anthropomorphic Robot
